DXR [d]
Main features
• Supply air
• Adjustable nozzles
• Cleanable commissioning box

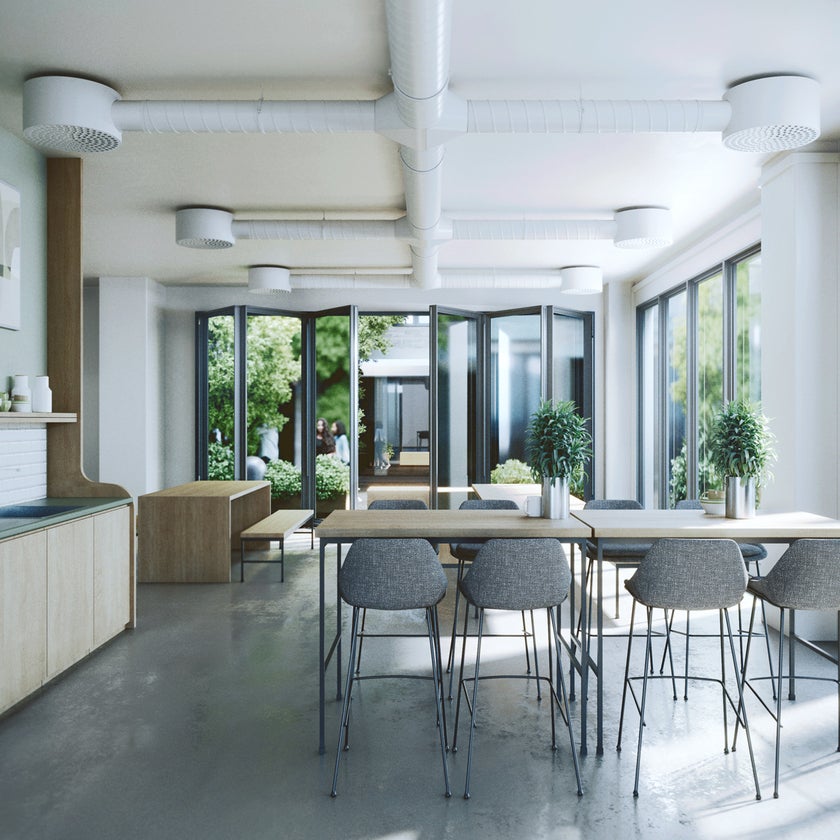

• Mounted free-hanging or flush with ceiling
Description
• Supply air diffuser with nozzles for free-hanging installation in most types of premises where a flexible diffusion pattern is desired.
• The diffuser has a built-in cleanable commissioning box with measuring hose and removable damper insert.
• DXR is supplied with tangential spread pattern unless otherwise specified when ordering.
Produktstørrelser (mm):
Ø100
Ø125
Ø160
Ø200
Ø250
Ø315
Ø400
Farvevalg

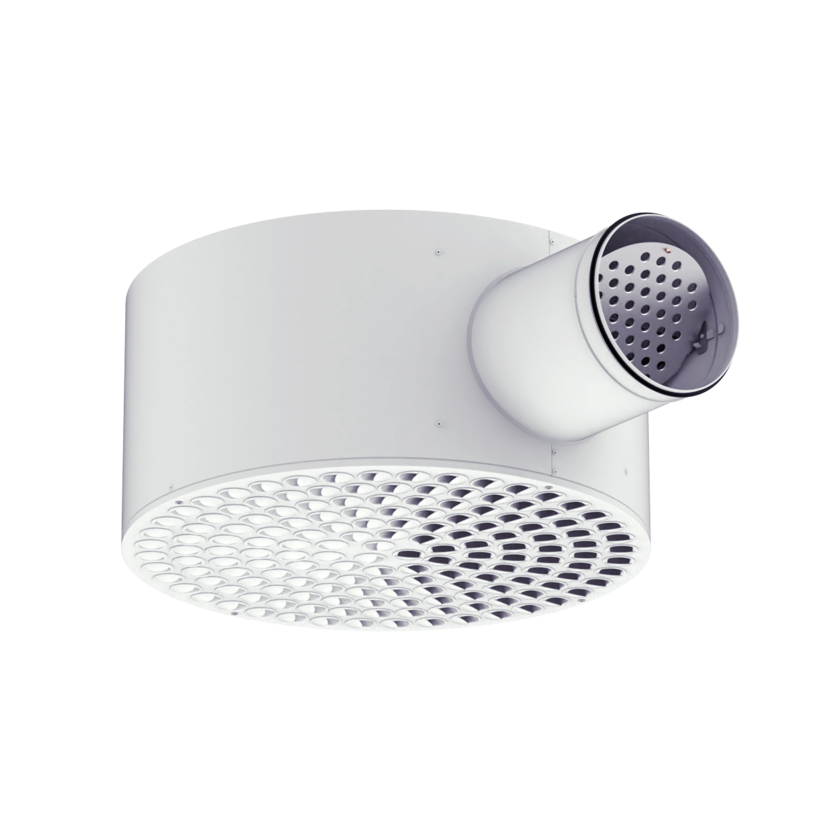

• Powder coated, white RAL 9003 (standard)

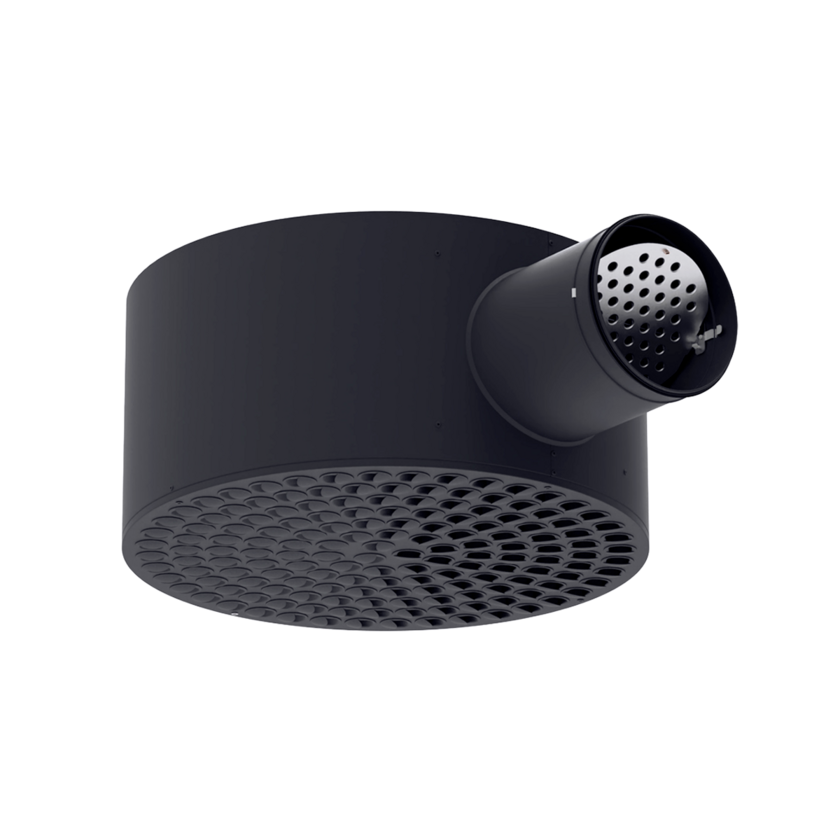

• Powder coated, black RAL 9005
• Unpainted, galvanised steel with nozzles in RAL 9006
• Diffuser body and front face made of powder-coated steel sheet in white RAL standard colour.
• The unit can alternatively be ordered in unpainted galvanised steel sheet with plastic nozzles in RAL 9006 for indoor environments where a more industrial look is desired.
• The product is internally insulated with washable, surface-coated sound absorber made from 100% recycled, non-allergenic, hydrophobic PET plastic material.
• Nozzles made from PP plastic.
• The diffuser socket is connected to a circular duct.
• The front face of the diffuser is detached during installation and is equipped with a double-fastened safety wire located closest to the socket. The wire acts as a “hinge” and keeps the damper cords and measuring hose firmly pulled through the nozzles throughout the installation.
• The diffuser is mounted flush with the ceiling or suspended using a threaded rod that fits into a pre-drilled 9 mm hole in the top of the diffuser (M8/8 mm fastener).
• The height of the diffuser is customised to fit a CD30 type attenuator with an additional damper in front of the diffuser when mounted flush with the ceiling.
Delivery form
• The product is delivered with damper cords and measuring hose pulled through the front plate, ready for commissioning.
• The product is also fitted with dust covers over the socket and front face to prevent construction dust from entering the product. The dust covers should be saved and discarded only after the facility has been put into operation.
