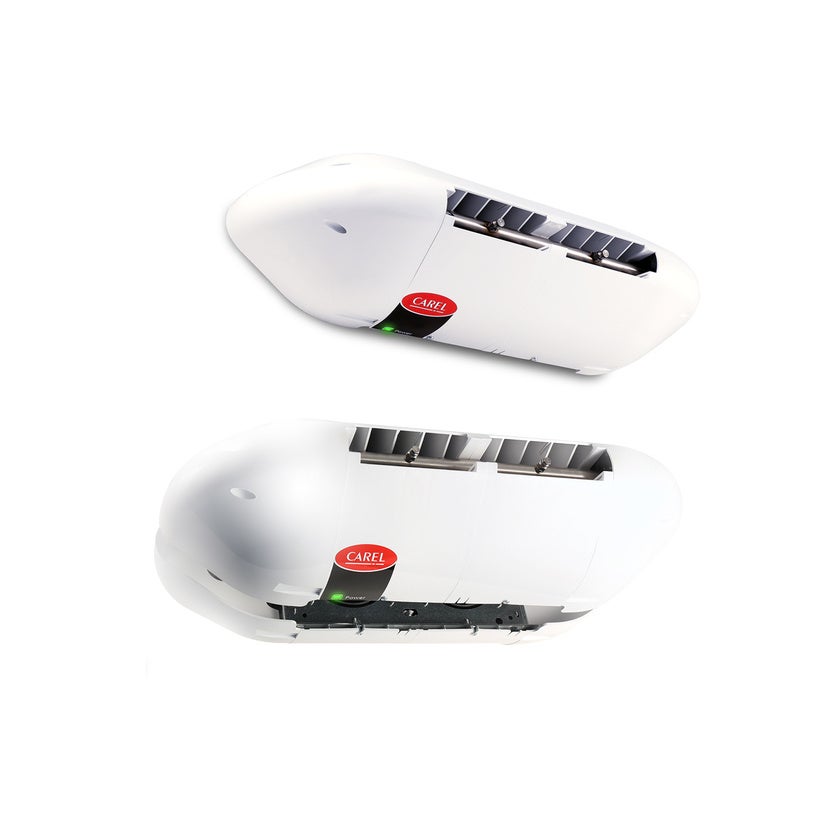

Blower unit for humiFog Direct
Main features
• Designed for CAREL humiFog Direct systems
• Enables direct room humidification with flexible installation options
• Available with one-way or two-way mist distribution
• Available in 2, 4 and 8 nozzle configurations
• Suitable for wall or ceiling installation
Description
Blower unit for CAREL humiFog Direct
The blower unit enables easy installation and flexible configuration of CAREL humiFog Direct humidification systems for direct room humidification. It distributes the atomised water mist efficiently into the room and allows installation where traditional air handling systems are not available or preferred.
The blower units are available in different configurations with one-way or two-way mist distribution and 2, 4 or 8 nozzle options. Thanks to the dedicated mounting systems, they can be easily installed on walls or ceilings.
Variants / Capacities
One-way distribution
• DLA02*F*00 – 2 nozzles: 3-8 l/h
• DLA04*F*00 – 4 nozzles: 6-16 l/h
Two-way distribution
• DLA04*B*00 – 4 nozzles: 6-16 l/h
• DLA08*B*00 – 8 nozzles: 12-32 l/h
• The blower unit is installed in the room as part of the CAREL humiFog Direct system and connected to the humidifier water supply and control. The unit can be mounted on walls or ceilings and distributes atomised water mist directly into the room according to the selected configuration.
• For detailed information on installation, connections, mounting and commissioning, refer to the installation and user manuals for humiFog Blower Unit and humiFog Direct.
