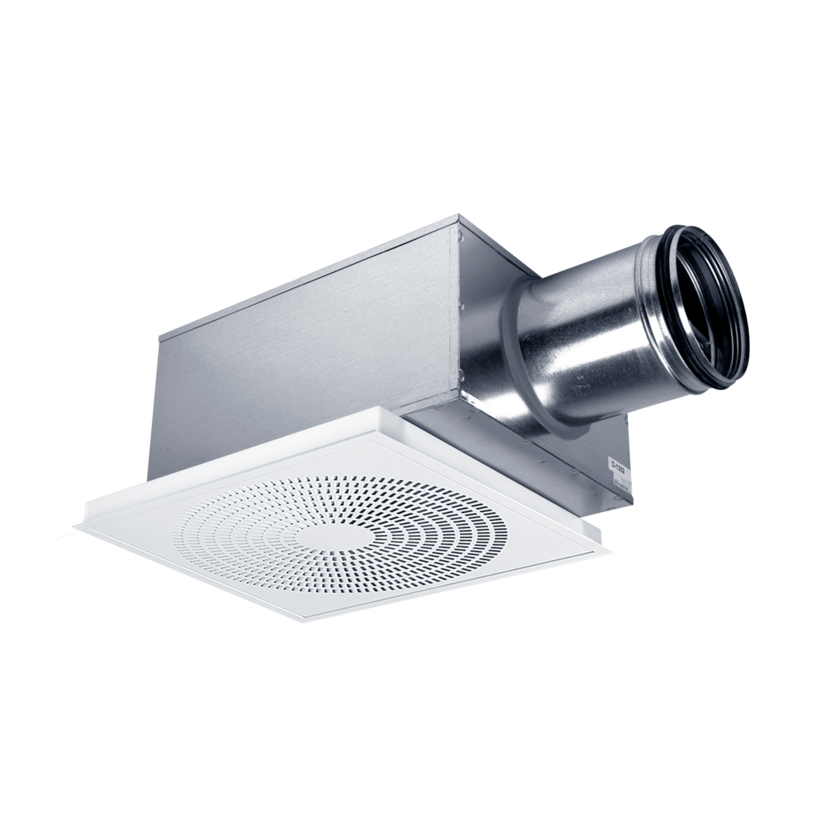

PRCI-TK

Main features

• For modular ceiling systems
• Tab perforated swirl patterned front
• Designed for supply air
• Tangential spread pattern
• Cleanable commissioning box – TK



Description

• Air diffuser for flush installation in most types of premises, suitable for offices, schools, hospitals and similar buildings with varying heating/cooling requirements.

• PRC/PRCI features a tab-perforated swirl-patterned  front with tangential spread pattern.

• The product's discreet design, combined with high functionality, provides an optimal solution that meets most architectural requirements.

• The diffuser is normally installed with a cleanable commissioning box, type TK/FK, which contains measuring hoses and commissioning damper.

• PRC/PRCI can also be used without a box. Commissioning must then be carried out with a separate damper.

• PRC is designed for installation in fixed ceilings.

• PRCI is designed for flush installation in modular ceiling systems (false ceilings)


• Commissioning box with measurement and commissiong damper:
Supply air – TK
Extract air – FK
• Duct extension between pressure distribution box and diffuser – MN
• Distance frame–DS/DSI


• Diffuser body and front made of sheet steel with an aluminum frame, powder coated in white RAL standard color.

• The product can be supplied in alternative materials.

•  Plenum/Commissioning box: Hot-dip galvanized steel sheet, internally insulated with washable and sound-absorbing material made of 100% recycled, non-allergenic, hydrophobic PET plastic.

• For general product specifications, see the document Product Specification which can be downloaded from our website.


• The product is connected directly to the commissiong box.

• The connection between the diffuser and the commissiong box can be extended with a circular piece of duct. If the connection exceeds 500 mm, an extension of the measuring hose and damper cords is required.

• When installed in a suspended ceiling, the MN accessory can be used, which extends the connection by 40 mm.

• The commissioning box is connected to a circular duct. Connection to a straight-mounted flexible duct is possible but not recommended.

• The commissioning box can be installed directly after a bend. When installed after a T-piece, a straight section of 4 x the duct diameter is required for mesuring accuracy.

• The diffuser's front plate is easily opened using, e.g. a credit card-sized plastic card, which enables easy installation and maintenance.
